AP-AB1228 High Speed Intelligent Self-balancing Ion Bar

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

The AP-AB1228 air-source anti-shock pulse AC ion bar uses DC high-voltage power supply and adopts special alloy electrode to alternately act on the coupling electrode needle through positive and negative DC high-voltage, which means the DC high-voltage source uses AC implementation mode to act on the electrode needle through the coupler to generate corona discharge, ionize the air molecules, and produce a large number of positive and negative air ions. And the compressed air is transported to the surface of electrostatic objects, and the positive and negative electrostatic charges are neutralized to achieve the purpose of eliminating electrostatic charges on the surface of objects efficiently and reliably.



DOWNLOAD FILE OF AP-AB1228:

ap-ab1228-intelligent-self-balancing-ion-bar-new.pdf
文件类型: .pdf ap-ab1228-intelligent-self-balancing-ion-bar-new.pdf
2.FEATURES:

1. bar type and horizontal electrostatic eliminator.
2. ion bar nozzle with airflow acceleration structure can achieve 2 times the speed of the traditional structure of the elimination of electricity.
3. positive and negative ion output ratio adjustable can be used to adjust the ion balance.
4. positive and negative ion output frequency adjustable can be applied to different elimination distance to achieve a faster elimination speed.
5. high voltage abnormalities when the red light alarms.
6. ion output characteristics can be adjusted by remote control.
7. with anti-electric shock function, to prevent electric shock injury to the human body.
8. can realize on-line communication, monitoring the working status of the ion bar.
9. through CE certification can effectively avoid external electromagnetic interference affect the normal work of the ion bar.
10. with electromagnetic protection function, will not cause electromagnetic interference to other equipment for working improperly.

3.SPECIFICATION:

Model

AP-AB1228

Input voltage

DC 24V

Input Current

< 600mA

Power

10W

Output voltage

±5000V-±6500V

Ion emission

Pulse AC

Emitter electrode

Tungsten alloy

Discharge structure

Resistance coupling

Output frequency

5,10,30,55,105Hz; (factory setting: 55Hz)

Duty factor

5%—95%

Discharge range

L*W*H:{275-2975(Needle spacing 50mm)}*300*1000mm

Installation distance

100→1000mm

Ion balance

≤|±30V|(AVG)

Discharge speed

≤2S

Condition monitoring

RS485 communication (can be connected in series for network monitoring)

Air pressure

≤0.6MPa

Compressed air connector

Φ8-G1/8 grey

Media used

Clean compressed air

Working temperature

0℃-50℃

Working humidity

< 70%

Dimensions

L*W*H:{275-2975(Needle spacing 50mm)}*36*68.2mm

Bar material

Flame retardant PVC,ABS,SUS,W

Packaging accessories

180°rotatable mounting angle

Power supply

GRT-240200: DC24V 2A, dual network port output, 123*61*40.5mm (L*W*H)

Power cord

2.5m

Warranty

1year

4.WORKING MODE:

The pulsed AC method alternately applies "+" and "-" high voltage to each electrode needle to generate two polar ions. Compared with the industrial frequency AC method, the ion generation utilization rate is higher, and its electrostatic elimination ability can be realized no matter for close or long distance. In addition, the discharge frequency can be adjusted to extend the elimination distance. Positive and negative ion output ratio can be adjusted for intelligent control.

5.ELECTROSTATIC ELIMINATION EFFECT:

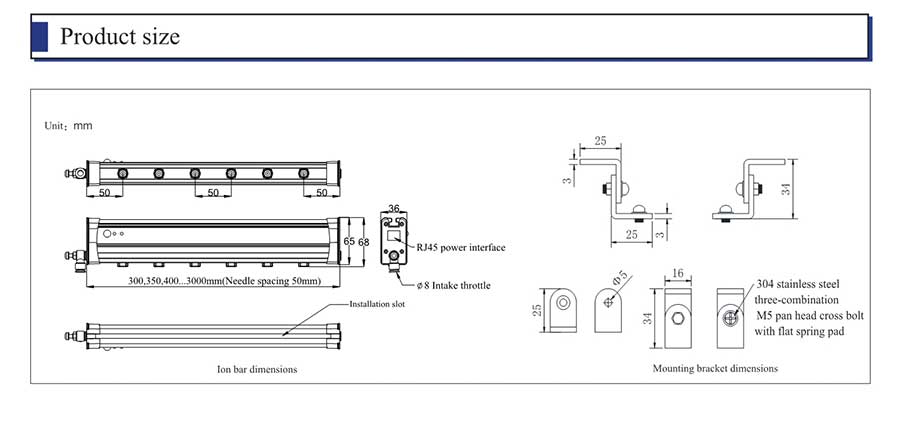

6.PRODUCT SIZE:
