AP-AB1602A Explosion-proof AC Ionizing Bar

1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

Suitable for coating, printing, film and other industries with flammable working conditions.

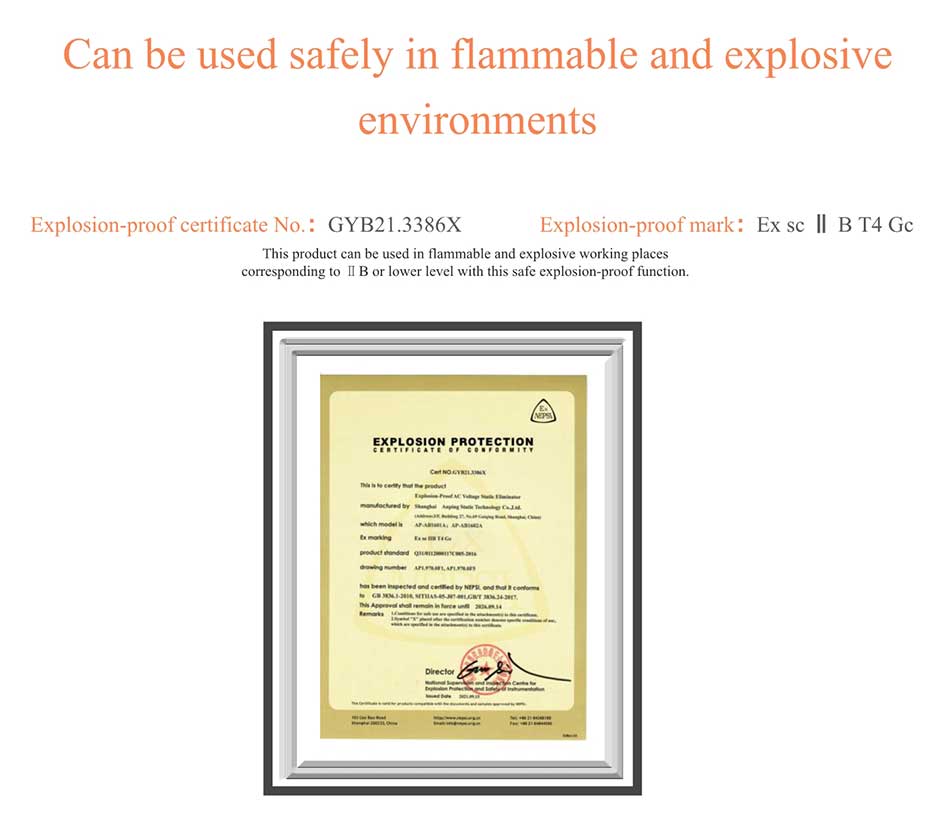

This product can be used in flammable and explosive working places corresponding to ⅡB or lower level with this safe explosion-proof function.

DOWNLOAD FILE OF AP-AB1602:

ap-ab1602a-explosion-proof-ion-bar-new.pdf
文件类型: .pdf ap-ab1602a-explosion-proof-ion-bar-new.pdf
2.FEATURES:

1. Bar type, horizontal active electrostatic eliminator.
2. Small bar body, beautiful shape.
3. Work under the condition of high voltage and small current (μA).
4. With the function of shock prevention, to avoid accidental human touch injury.
5. Has certain anti-ignition and explosion function, can be applied to inflammable explosion conditions.
6. Special strip notch on the back of the bar body, movable mounting bolt.

3.SPECIFICATION:



Type

AP-AB1602A

Explosion-proof sign

Ex s ⅡB T4 Gb

Explosion-proof certificate No.

GYB16.1549X

Working Voltage

Power frequency AC4000V

Power

20W

Ion emission

Power frequency AC

Transmitting electrode

SUS

Discharge structure

Resistance coupling

Electrode high voltage

≤4000V

Electrode pin combined capacitor

<3.5pF

Power consumption range

L*W*H(110mm→3000mm)*300mm*600mm

Installation distance

100-600mm

Air pressure

≤0.6MPa

With throttle

Air source connector

Φ8-G1/8 Red

Ion balance

≤|±300V|

Discharging speed

≤2.5S (Different test conditions will result in different test data)

Operating temperature

0°C – 50°C

Working humidity

<70%

Rod material

Flame retardant PVC,AL

Dimensions

L*W*H(110mm→3000mm)*28.6mm*38.7mm

Installation accessories

Hex Bolts M5*20

Supporting power

AP-AY1603/2603

High-voltage connection line length

2.5m(Can be customized according to requirements, the maximum length is 8m)

Warranty period

1 year

Certification

CE

4.WORKING MODE:

The product uses power frequency AC high voltage, through the impedance coupler acting on the special emission electrode, make the air molecules ionized, produce positive and negative high voltage ions; And make it transported to the surface of the eliminated electrostatic object, neutralizing positive and negative electrostatic charges, to achieve the purpose of efficient and reliable elimination of static electricity.

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:
