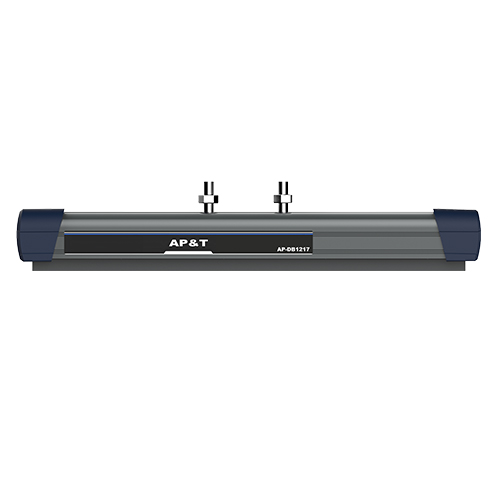

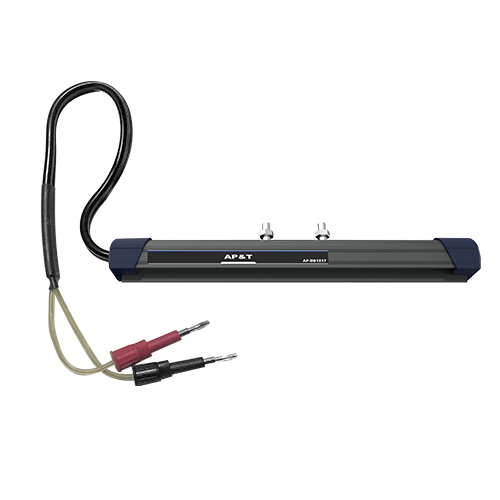

AP-DB1227 Long-distance Electrostatic lonizing Bar

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:
The AP-DB1227 Long-distance deionization ion bar is a rod-type deionization device developed and manufactured by Anping company for long-range deionization.


DOWNLOAD FILE OF AP-DB1227:

ap-db1227-long-distance-electrostatic-ionizing-bar.pdf
文件类型: .pdf ap-db1227-long-distance-electrostatic-ionizing-bar.pdf
2.FEATURES:
1. Electric Shock Proof
2. Multiple Sizes, Customizable
3. Indicator Light
4. Intelligent Remote Control
5. CE Certification
3.SPECIFICATION:
Model AP-DB1227
Input Voltage DC 24V
Power < 15W
Electrode High Voltage < 3OKV
lon Emission Pulse DC
Emitter electrode Tungsten (W)
Output Frequency FREQ:0.1.0.3.0.5.0.71,3,5.7.10,30.55Hz Factory setting; 1Hz, parameters can be adjusted by FREQ coding switch or remote control
High voltage output is calibrated at the factory but can be adjusted on-site according to the usage situation and may be reselected for the appropriate working frequency to maxi-mally eliminate static charges on the object's surface
Ozone Thickness < 0.1ppm (100mm from the emission electrode)
Status Indicator Green light-normal working, Red light-high voltage abnormal, Blue light-adjustment/cleaning indication
RJ45 Port Indicator Light: Green light-power on indication, Orange light-communication indication
Status Monitoring RS485(115200bps,8.1.n,n)> 30ms
Collector Open Circuit: < 50V,100mA
Working Temperature 0°C-50℃
Working Humidity <70%
Dimensions L'W'H:L'38*77.5mm (See dimension diagram for details)
Bar Body Material Flame retardan PVC、ABS
Installation Accessories M5 slider nuts
Supporting Power Supply GRT-240200:DC24V 2A,dual network port output, 123*61'40.5mm(L'W"H)
Length Of Supporting Power Network Cord 2.5m
Warranty 1 Year
Certification CE

4.WORKING MODE:

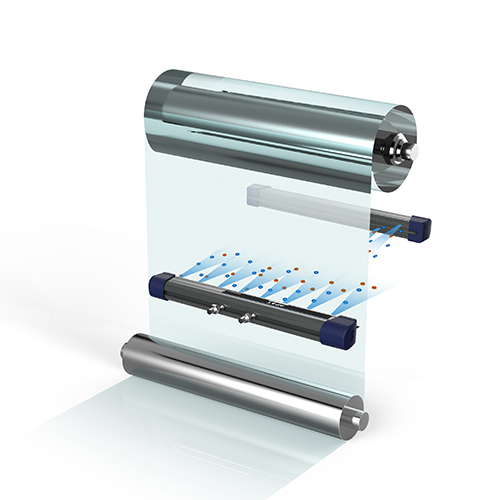

The AP-DB1227 Long-range deionization ion bar uses a DC high voltage power supply and tungsten electrodes. By alternating positive and negative DC high voltages on coupled electrode needles, it generates corona discharge, ionizes air molecules, and produces a large number of positive and negative air ions. These ions are transported under a high voltage electric field to the surface of distant charged objects, neutralizing staticcharges on the object's surface.

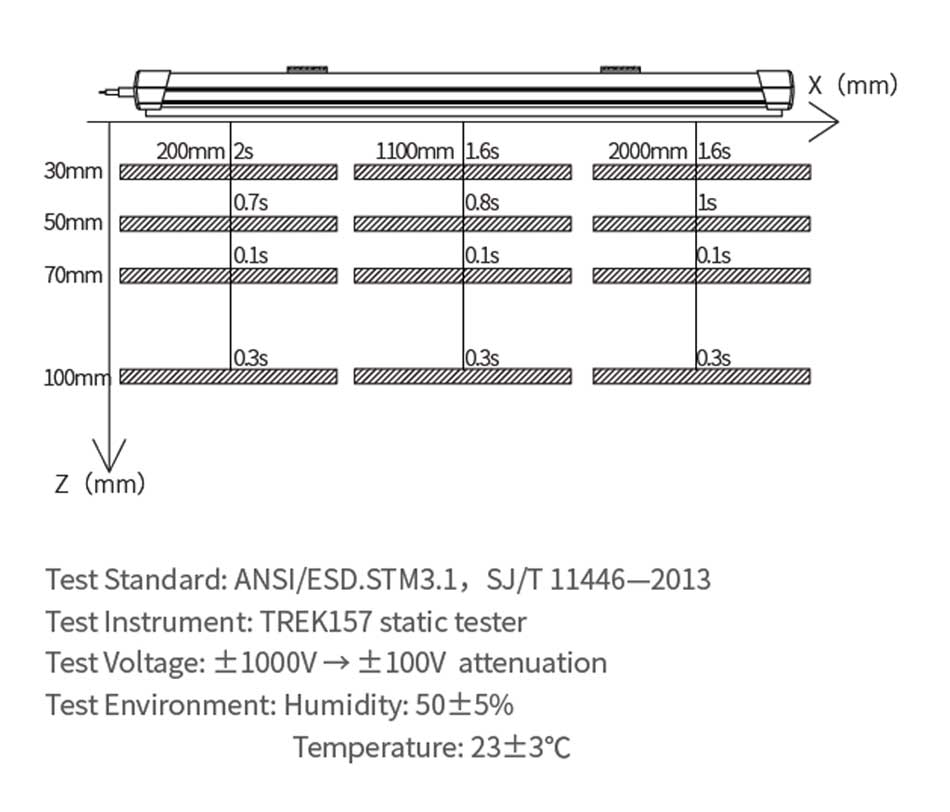

5.ELECTROSTATIC ELIMINATION EFFECT:

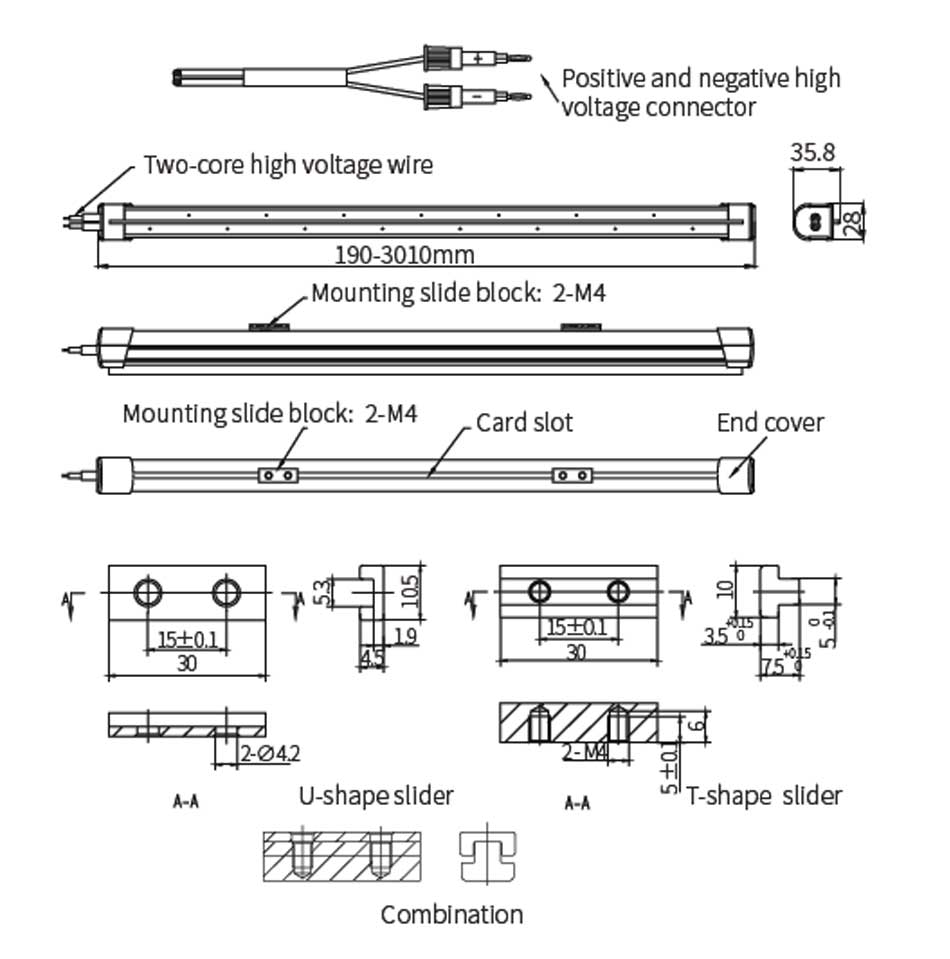

6.PRODUCT SIZE:
