AP-DJ2711 Intelligent Remote Control DC Anti Static Air Blower

Video


Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-DJ2711 intelligent control / networking type ion fan using DC de static technology, high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans increased by 1.45 times.

DOWNLOAD FILE OF AP-DJ2711:

ap-dj2711-intelligent-control-network-ionizing-blower.pdf

ap-dj2711-intelligent-control-network-ionizing-blower.pdf

2.FEATURES:

1. Smaller spacing between air outlets, ion coverage density is greater.

2. with automatic brush needle function on.

3. default every 8 hours automatically brush the needle once, eliminating the need to manually brush the needle cleaning and maintenance.

4. high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans to improve 1.45 times.

5. fan failure and high voltage abnormal, red light alarm.

6. can realize wired network communication to monitor the working status of the fan.

7. Through the CE test, with electromagnetic protection function, will not cause electromagnetic interference to other equipment; can also effectively avoid external electromagnetic interference affect the normal work of the fan.

8. magnetic suction type mesh cover, mesh cover separation instant power off, easy to disassemble and maintain.

3.SPECIFICATION:

Model	AP-DJ2711
Input voltage	DC 24V（RJ45 interface）/ Three in one socket （220VAC 50/60Hz）
Input Current	＜ 0.15A AC
Output voltage	DC±4KV → ±7KV
Power	＜ 12W
Ion emission	DC
Emitter electrode	Tungsten alloy
Discharge range	750300mm（LW）
Air volume	≤ 135CFM*1
Noise	Single air outlet≤ 58dBA（1000mm away from the air outlet）
Ozone thickness	≤ 0.05ppm（150mm away from the air outlet）
Ion banlance	≤ \|±10V\|
Discharge speed	≤ 2S（300mm directly below the air outlet）
Alarm indication	Power on/clean operation—blue light flashes;
	Normal work—green light (always under monitoring status);
	Fan alarm—red light always on;
	High voltage abnormality—red light flashes;
	Blue light flashes during infrared debugging
Communication method	RS485
Working temperature	0℃ -50℃
Working humidity	＜ 70%RH
Dimensions（LWH）	15267.5190mm（Ionizing Air Blower body size）
Shell material	Aluminum powder spraying
Installation accessories	1 pair of L-shaped iron powder spraying mounting brackets, 1 pair of bakelite screw handles（M5×8）
Power adapter	INPUT：AC100—240V 50/60Hz；
Power adapter	OUTPUT：DC24V 2A（dual RJ45 interface）
Net weight(Including power cord and bracket)	1.8KG
Gross weight	2.3KG
Warranty	1Year
Certification	CE

4.WORKING MODE:

The DC method applies "+" and "-" high voltage to two electrode needles to generate two polar ions. The ion generation utilization rate is high, the electromagnetic interference to the outside is small, and the impact on the degree of particle pollution of the purification environment is small. At present, many fans on the market use high-frequency AC, due to the lower discharge voltage and weaker electric field, so the dust tolerance is poor, easy to cause corona occlusion, resulting in the inability to eliminate electricity.

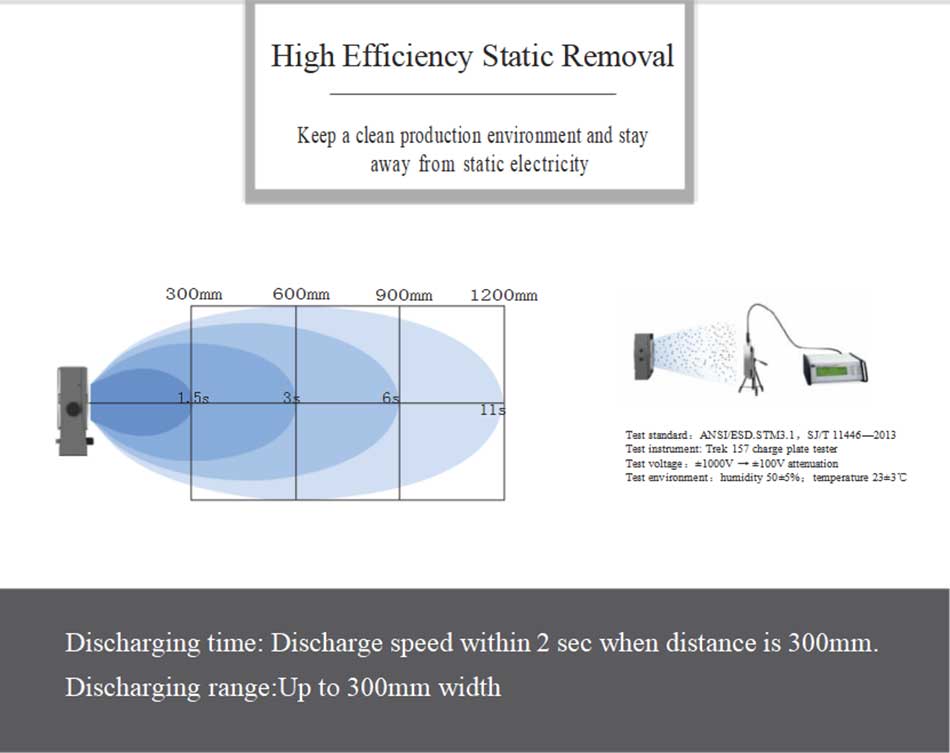

5.ELECTROSTATIC ELIMINATION EFFECT:

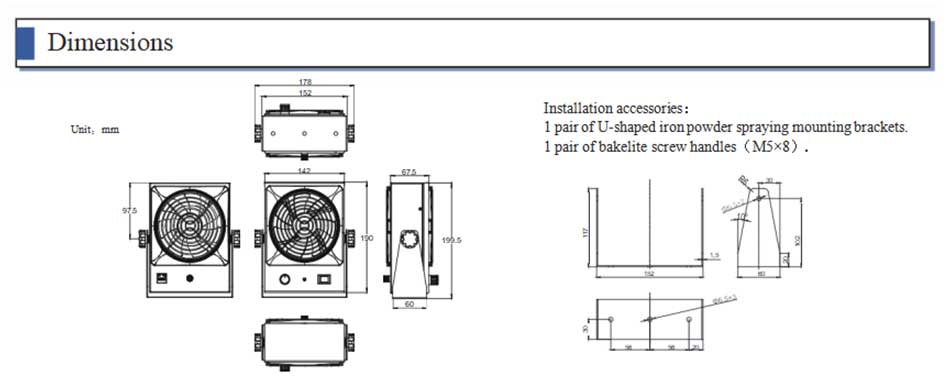

6.PRODUCT SIZE:
