AP-KS9302 System Monitoring Terminal

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.FUNCTION INTRODUCTION:

5.PRODUCT SIZE:

1.PRINCIPLES:

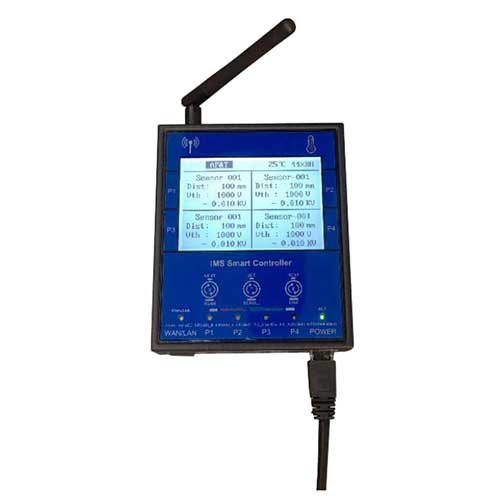

AP-KS9302 system monitoring terminal is the monitoring display of the static electricity monitoring and elimination system produced by Anping Company (AP&T) which is used to monitor the working status of pulsed DC ionizing blowers, pulsed AC ionizing bars, and electrostatic sensors.

The system monitoring terminal (AP-KS9302), also called IMS intelligent monitor, can provide 4 ways of communication network transmission, support LAN/WAN connection, flexibly configure real-time monitoring static electricity detection and elimination equipment, and realize power supply, data interaction, real-time display, linkage, etc.

DOWNLOAD FILE OF AP-KS9302:

ap-ks9302-system-monitoring-terminal.pdf

ap-ks9302-system-monitoring-terminal.pdf

2.FEATURES:

1. Monitoring and display of the working status of electrostatic eliminators and sensors.
2. The working status of 4 ways equipment can be monitored simultaneously.
3. 4 ways working status indicator lights, 1 way communication status indicator light, and 1 way power-on indicator light.
4. RJ45 power supply and communication port.RS485 and wireless communication function.

3.SPECIFICATION:

Specifications

NO.

Parameter

Adapter

IN:AC85-240V OUT:24V 2A

Dimensions

100*120*25

Indication

LED

Digital display

3.5 inch COG，monochrome

Working environment

Temperature：0-50℃；Humidity：30-70%RH

Product network port

4 ways：P1-P4

Network port definition

1、2

5、6、9

White-orange/orange

White-blue

Blue

White-green/green

White-brown

brown

VCC

RS485_B

RS485_A

GND、PE

NPN-C1

NPN-C2

Communication network port

WAN/LAN

Power network port

POWER

Net weight

400g

Gross weight

500g

Function

NO.

Parameter

Network port

POWER

Power port(with RS485 communication method)

P1-P4 Note 1

Eliminator or sensor

WAN/LAN Note 2

Ethernet connection

LED

P1-P4

Red light

Eliminator

High voltage indication

Flashing

Sensor

Threshold indication

Green light

Eliminator

Power-on indication

Always on

Sensor

Eliminator

Cleaning indication

Flashing

Note

1、P1 - P4 : Only 2 eliminators can be connected due to power limit of power supply

2、WAN/LAN : The power supply cannot be connected to this network port, otherwise the wireless module will be damaged

4.FUNCTION INTRODUCTION:

5.PRODUCT SIZE:
