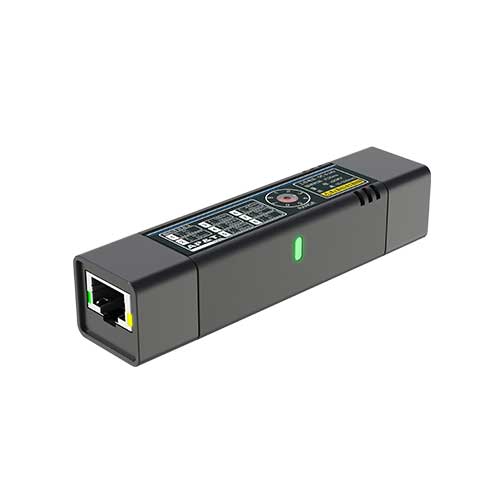

AP-YV3301 Horizontal Electrostatic Sensor

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.STATIC VOLTAGE RANGE AND MINIMUM RESOLUTION

5.PRODUCT INSPECTION PERFORMANCE TEST

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-YV3301 Horizontal Electrostatic Sensor is a testing instrument developed and produced by Anping Company to detect the surface electrostatic voltage of electrostatically charged objects. It uses non-contact measurement technology to minimize the impact of the testing instrument on the object's surface electrostatic field, ensuring measurement accuracy.

DOWNLOAD FILE OF AP-YV3301:

ap-yv3301-horizontal-electrostatic-sensor.pdf

ap-yv3301-horizontal-electrostatic-sensor.pdf

2.FEATURES:

1.Comfortable to the touch and beautifully styled.

2.Detection distance can be selected by a dip switch.

3.Wide detection potential range and high detection accuracy.

4.Alarm threshold can be set, beyond the threshold red light alarm.

5.High-definition, omni-directional LCD data display terminal.

6.Real-time transmission of monitoring data to PC.

7.Comfortable to operate and easy to use.

3.SPECIFICATION:

NO.

Parameter

Working voltage

DC8-24V

Working current

＜ 50mA

Sampling time

About 30ms

Vibration

＜ 1KHz

Noise

＜ 5dB

Signal output

RS485(115200bps,8,1,n,n)（≧ 50ms）

Open Collector（<50V/100mA）

Network Port

1、2

5、6

Orange，

Blue

White - blue

green,White

Brown

White brown

Metallic shield

Definition

White Orange

green

shell

VCC

RS485+B

RS485+A

GND

NPN-C1

NPN-C2

Communication distance

＜ 300m

Alarm indication

LED

Threshold setting

0 ～ ±5000V

Detection angle

＜ 15°

Test plate size

600mm*600mm

Dimensions

24*22*102mm

Net weight

47.4G

Power-on standby test time

Infrared controlled range

＜ 20°，1m

Certification

4.STATIC VOLTAGE RANGE AND MINIMUM RESOLUTION

Detection gear	Distance code	Detection distance	Measurement range	Deviation	Calibration

1	0
	1	NC	NC	NC	×

2	2

	3	50mm	±20000V

3	4	100mm	±20000V		√
	5	150mm	±20000V

4	6	200mm	±20000V		×
	7	250mm	±20000V	5%

5	8	300mm	±20000V		√

	9	350mm	±20000V

6	A	400mm	±20000V		×
	B	450mm	±20000V

7	C	500mm	±20000V		√
	D

8	E	NC	NC	NC	×
	F

5.PRODUCT INSPECTION PERFORMANCE TEST

6.PRODUCT SIZE:
