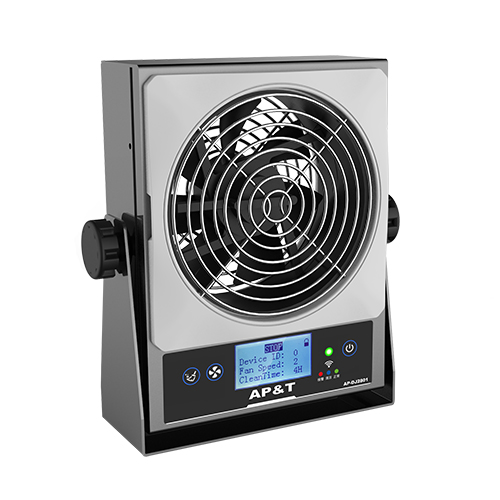

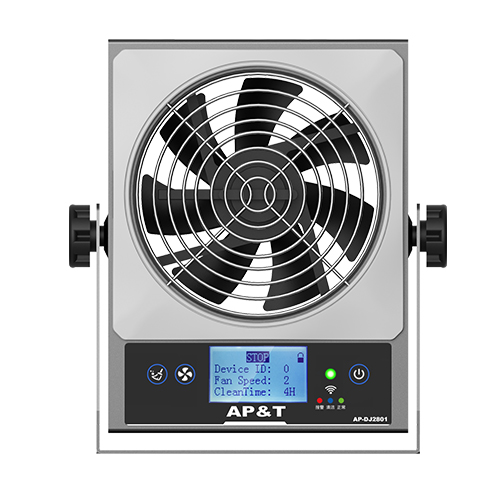

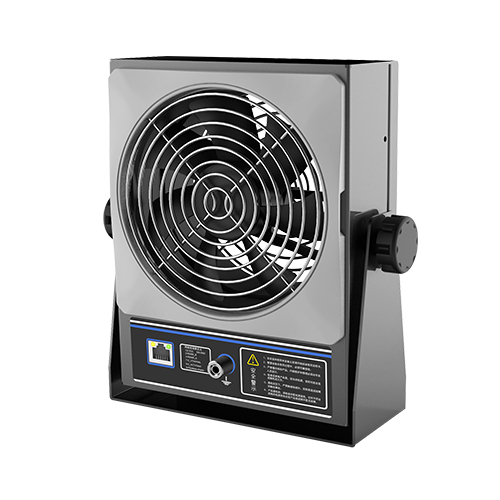

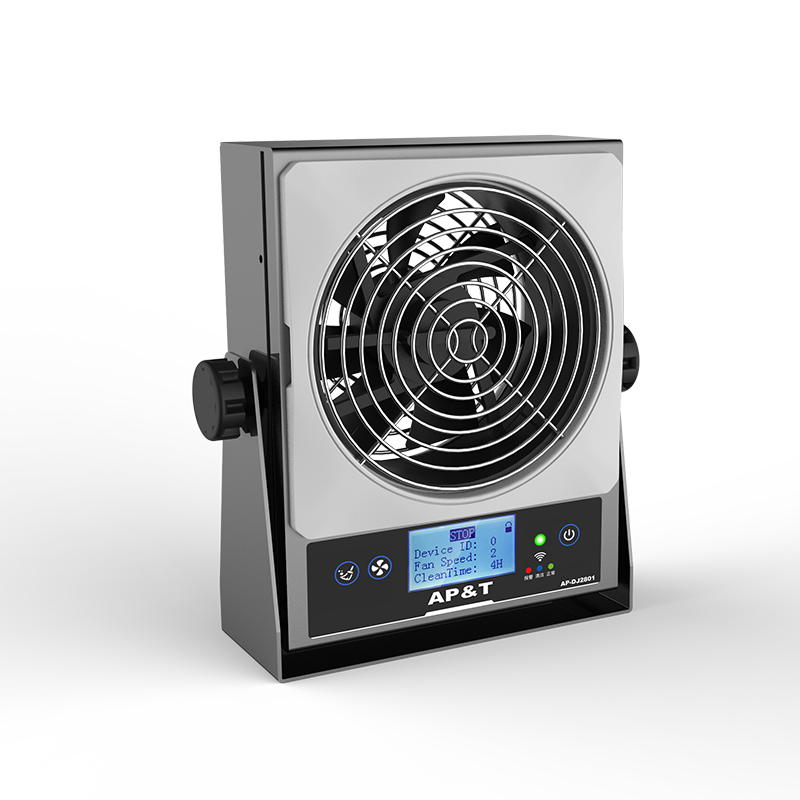

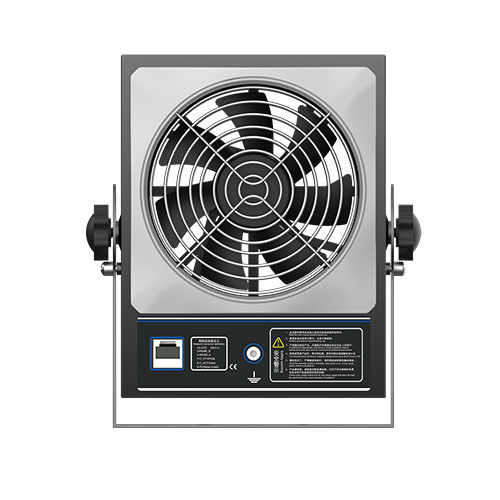

AP-DJ2811 Intelligent Control LCD Display Ionizing Air Blower

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

AP-DJ2811 intelligent control / networking type screen display ion fan using DC de static technology, high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans to improve 1.45 times. With LCD display, with ion self-balancing function, self-balancing range ± 10V, and real-time display of the balance voltage.



DOWNLOAD FILE OF AP-DJ2811:

ap-dj2811-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf
文件类型: .pdf ap-dj2811-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf
2.FEATURES:

1.Touch switch button, easy and fast to operate and use.
2. multiple air outlets, each outlet 8 needles, ion generation large amount.
3. with automatic brush needle function.
4. default every 8 hours automatically brush the needle once, eliminating the need to manually brush the needle cleaning and maintenance.
5. high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans increased by 1.45 times.
6. with LCD display, can display the device address, wind speed gear, cleaning cycle, ion balance voltage, temperature and humidity, high voltage alarm, each wind port balance voltage real-time display, exceed the set threshold alarm; high voltage failure for 0V, the output alarm prompt.
7. with ion self-balancing function, self-balancing range ± 10V, and real-time display of the balance voltage.
8. positive and negative ion output ratio adjustable, can be used to adjust the ion balance voltage.
9. fan failure and ion balance abnormalities, the display and LED red light alarm.
10. ion output characteristics, can be adjusted by remote control.
11. can achieve wired network communication, monitoring the working status of the fan.
12. through the CE test, with electromagnetic protection function, will not cause electromagnetic interference to other equipment; can also effectively avoid external electromagnetic interference affect the normal work of the fan.
13. magnetic mesh cover, mesh cover separation instant power off, the fan then in standby (STOP) state, easy to clean and maintain.

3.SPECIFICATION:

Model No

AP-DJ2811

Input voltage



DC 24V (dual RJ45 interface)

Input current



<0.6A

Output voltage

DC±5KV→±5.5KV

Power

<14.5W

Ion emission

DC

Emitter electrode

Tungsten



Discharge range

750*300mm(L*W)

Air volume



<179CFM

Noise

<75dBA(150mm from air outlet)

Ozone thickness

≤0.05ppm(150mm from air outlet)

Ion balance

≤|±10V|

Discharge speed

≤1.5S(300mm from air outlet)

Alarm indication

Boot instant-blue light

Normal working -Green light(Under monitoring)

Fan alarm -Red light flash with beeping

Ionization abnormal-Red light slow flash with beeping

Blue light blinks when infrared debugging

Working temperature

0℃-50℃

Working humidity



<70%RH

Dimension

177*81*205.5mm(L*W*H)

Power adaptor



1. Interface power supply (default configuration):



INPUT: AC100240V 50 / 60Hz;



OUTPUT: DC24V 2A (dual RJ45 interface)



2. Jack-type power supply (customized):



INPUT: AC100240V 50 / 60Hz;



OUTPUT: DC24V 2A (5.5 * 2.5 single male head)



Integrated power supply



(Optional)



INPUT:AC100—250V  50/60Hz



OUTPUT: DC24V 2A (16 RJ45 interfaces)



Communication method

RS485



Shell material



Aluminum dusting



Installation accessories



1 pair of U-shaped aluminum powder spraying mounting bracket, 2 pairs of stainless steel screw handles (M5 × 8)



Weight



Bare metal (including bracket) 1125g



Net weight (network cable, power cord, adapter, remote control) 1590g



Gross weight 2080g



Quality assurance



1Year

Certificate

CE

4.WORKING MODE:

The pulsed DC method alternately applies "+" and "-" high voltage to the positive and negative electrode pins to generate two polar ions. Compared with the industrial frequency AC method, the ion generation utilization rate is higher, whether for close or long distance, can play its electrostatic elimination ability. In addition, the discharge frequency can be adjusted to extend the elimination distance. Positive and negative ion output ratio can be adjusted for intelligent control.

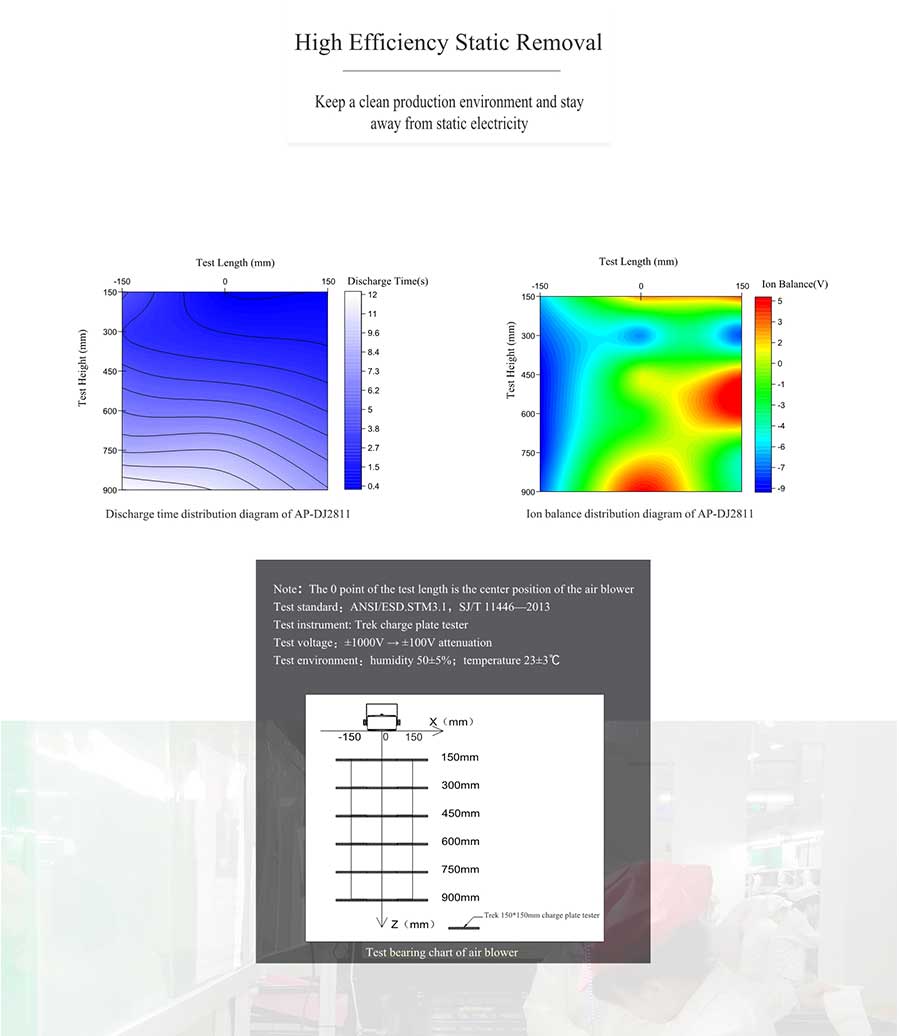

5.ELECTROSTATIC ELIMINATION EFFECT:

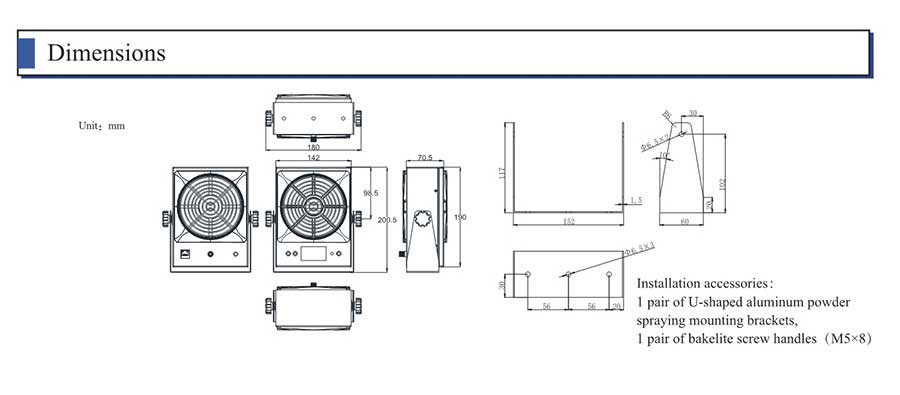

6.PRODUCT SIZE:
