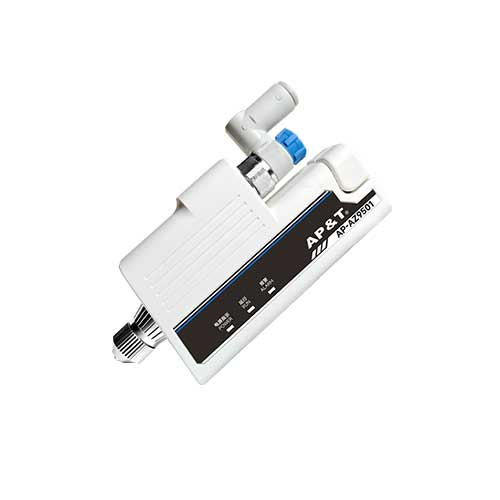

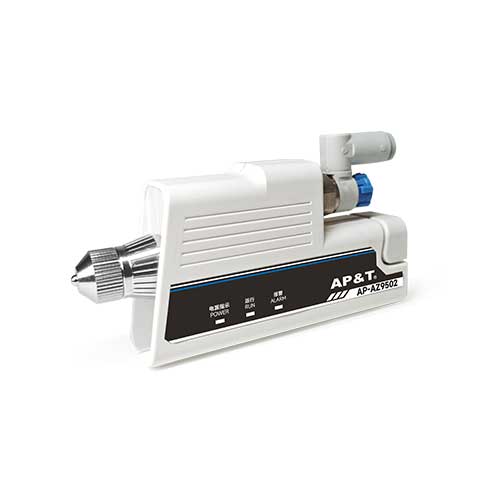

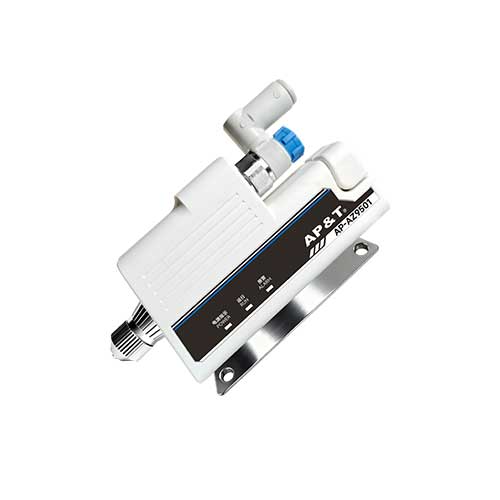

AP&T AP-AZ9502 High-Frequency AC Ionizing Air Nozzle

Video


Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

The AP-AZ9502 nozzle operates on DC 24V power. A piezoelectric ceramic transformer boosts the voltage and applies high-frequency high voltage to a special emitter electrode, ionizing the air to produce large quantities of well-balanced positive and negative ions. These ions are delivered via compressed air to neutralize static charges on the target surface.

DOWNLOAD FILE OF AP-AZ9502:

ap-az9502-high-frequency-ac-ionizing-air-nozzle-new.pdf

ap-az9502-high-frequency-ac-ionizing-air-nozzle-new.pdf

2.FEATURES:

1. Compact and lightweight, comfortable to handle, and easy to operate.

2. Generates a large number of ions with high efficiency for static elimination and dust removal.

3. The high-voltage generator is fully enclosed for excellent safety.

4. The high-voltage components are electromagnetically shielded to prevent external interference.

5. Supports IO/RS485 communication (requires additional accessories as listed).

3.SPECIFICATION:

Model	AP-AZ9502-485				AP-AZ9502-IO
Input Voltage				DC24V ±1V
Electrode Voltage			High-Frequency AC：V_pp=9000V
Input Current				< 83mA
Power				< 2W
Working Distance				150-300mm
Air Pressure				0.1-0.5MPa
Air Inlet				Ф6mm
Discharge Time		＜ 1.0s（150mm right ahead of the nozzle）
Ion Balance	\|± 15V\|（150mm right ahead of the nozzle， Air pressure 0.3MPa）
	Power Indicator	Geen		Power Normal		Power Abnormal
Status Indicator	Operation Indi-	Geen		Operating Normally	Off	Nozzle Not Running /
	cator					Operating
	Alarm Indicator	Red		High-Voltage Fault (Oper-		High Voltage Normal
				ation light off)

Operating				0-40℃
Temperature

Operating				30—70%RH (No Condensation)
Humidity

Ozone Level				＜ 0.03ppm

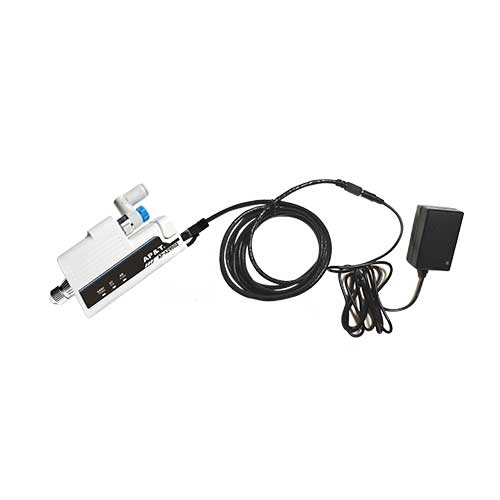

Power Adapter				MODEL：T6-2400500
		INPUT：AC100V-240V 50Hz-60Hz 0.3A
				OUTPUT：DC24V 0.5A
Dimensions	Nozzle (with mounting bracket)				10325.561.25mm
	Power Adapter				714330mm
（*LWH*）
	RJ45 Power Cable Length				2.5m（Default）

Power Adapter	Nozzle (with mounting bracket)					120.1g
	Power Adapter:					101.3g

Gross Weight				470.9g

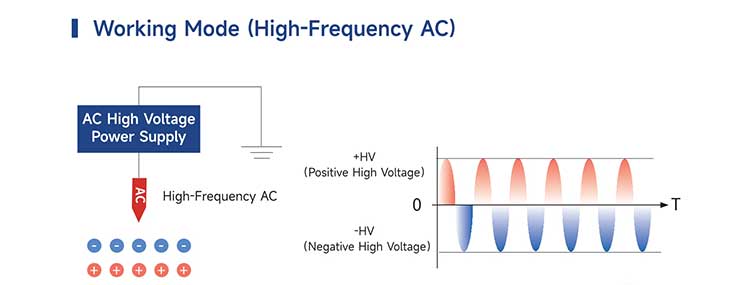

4.WORKING MODE:

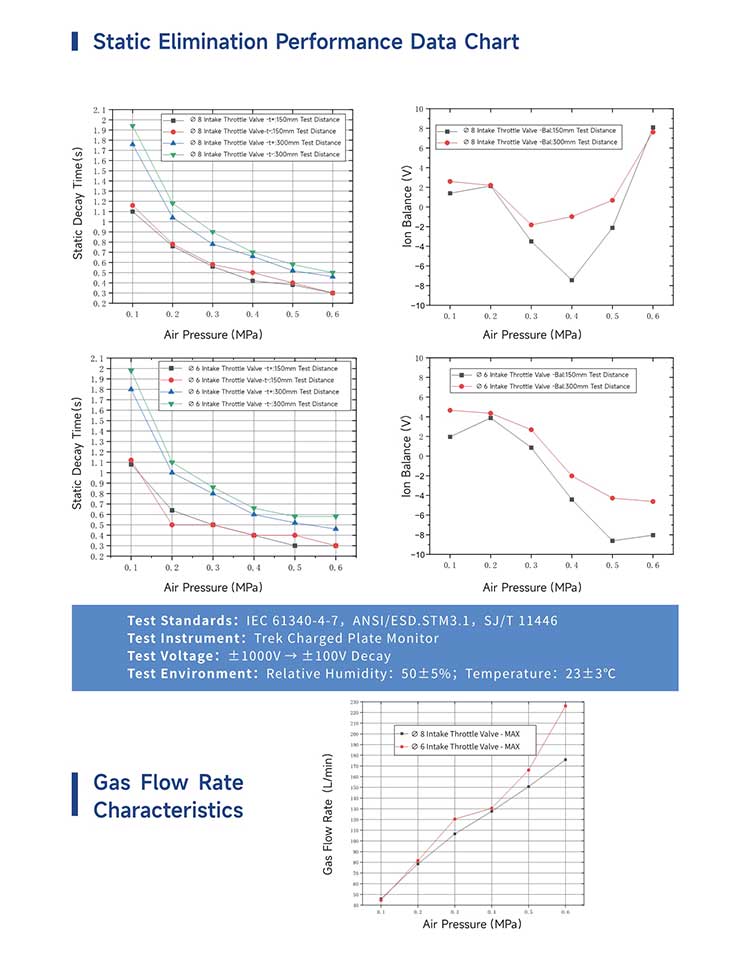

5.ELECTROSTATIC ELIMINATION EFFECT:

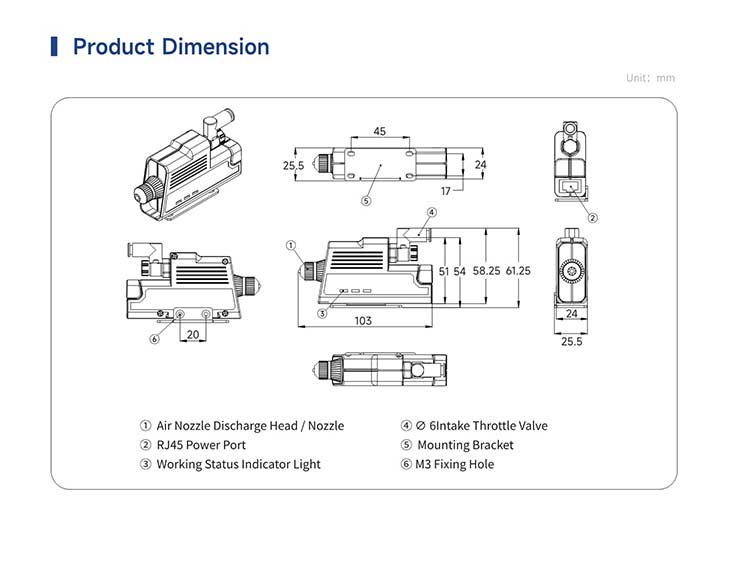

6.PRODUCT SIZE:
