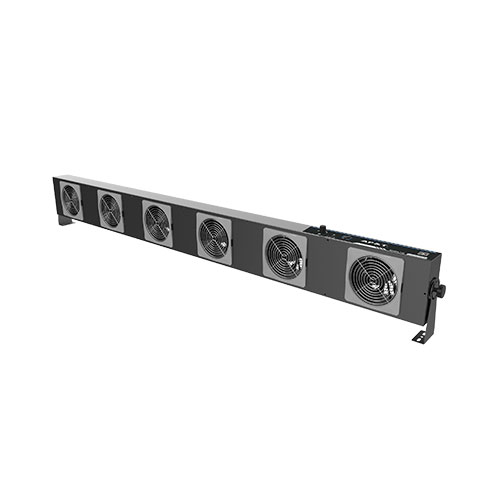

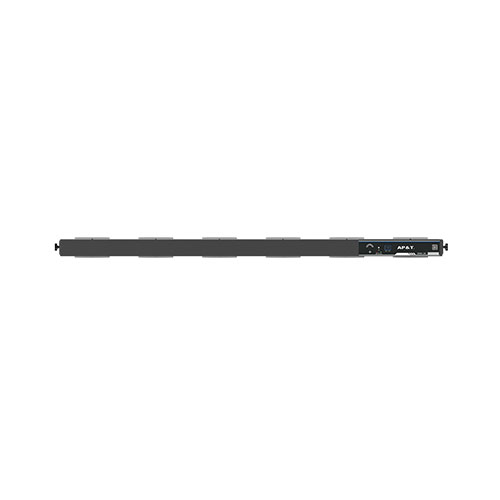

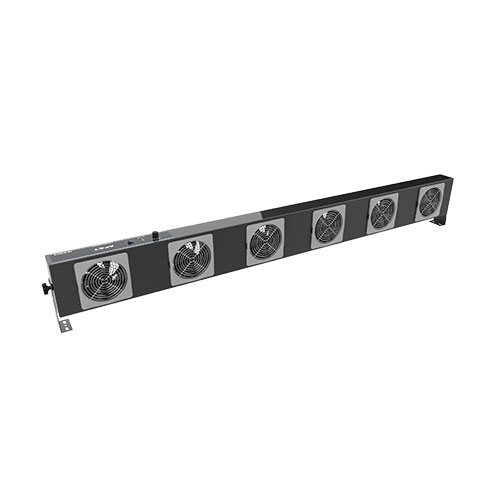

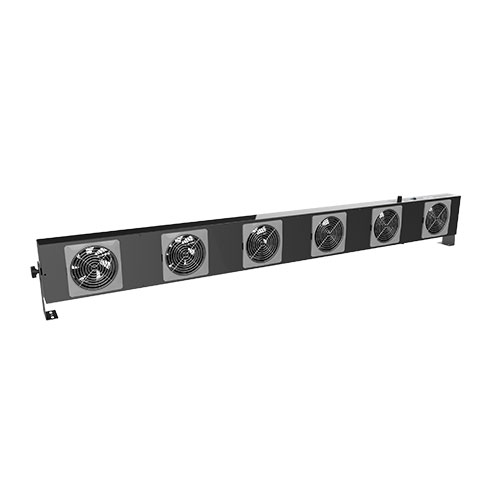

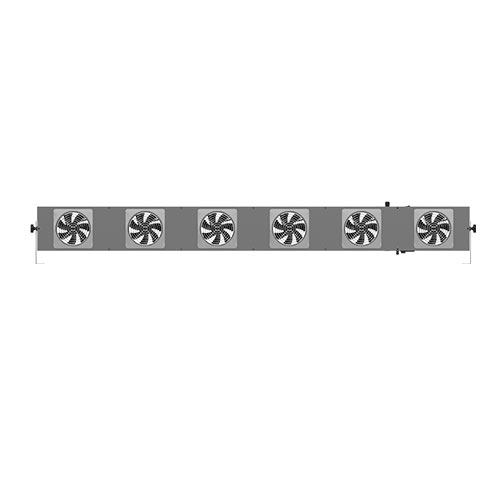

AP-DJ2716 Intelligent Control Network Overhead Ionizing Air Blower

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-DJ2716 intelligent control / networking type ion fan using DC de static technology, 6 mouth fan, wide range of de static, high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans to improve 1.45 times. with ion self-balancing function, self-balancing range ± 10V, and real-time display balance voltage.

DOWNLOAD FILE OF AP-DJ2716:

ap-dj2716-intelligent-control-network-ionizing-air-blower-new.pdf

ap-dj2716-intelligent-control-network-ionizing-air-blower-new.pdf

2.FEATURES:

1.The power is cut off immediately when the net cover is separated , which is convenient for disassembly and maintenance.
2.4 tungsten electrode needles with longer life time. High speed 7-blade fan transfers larger ion air volume.
3.The ionizing air blower automatically brush the needle after it is turned on.During operation, the ionizing air blower automatically brushes the needle every 8 hours without manual brush cleaning and maintenance.
4.Red light alarm: Ionizing air blower break down or abnormal high voltage. Blue light flashing: Debugging or cleaning Green light on: Ionizing air blower is working normally
5.Wired network communication realisable and monitor the working status of the air blower
6.High air volume fan five speed control with stable performance. Air volume output 1.45 times higher than ordinary fans.

3.SPECIFICATION:

Model	AP-DJ2716

Input voltage	DC 24V（RJ45 interface）/3 in 1 socket （220VAC 50/60Hz）

Input Current	＜ 0.21A AC

Output voltage	DC±4KV → ±7KV

Power	＜ 77W

Ion emission	DC

Emitter electrode	Tungsten

Discharge range	7501550mm（LW）

Air volume	≤ 135CFM*6

Noise	Single air outlet ≤ 58dBA（1000mm away from the air outlet）

Ozone thickness	≤ 0.05ppm（150mm away from the air outlet）

Ion banlance	≤ \|±15V\|

Discharge speed	≤ 3.0s（450mm away from the air outlet）

	Power on/clean operation—blue light flashes

	Normal work—green light (always under monitoring status)
Status indicator
	Fan alarm—red light always on

	High voltage abnormality—red light flashes

	Infrared debugging/cleaning prompt - Blue light flashing

Communication mode	RS485

Working temperature	0℃ -50℃

Working humidity	＜ 70%RH

Dimensions（LWH）	150067154mm（Ionizing Air Blower body size）

Shell material	Aluminum powder spraying

Installation accessories	1 pair of L-shape iron powder spray mounting bracket ,
	1 pair of ABS screw handles（M6×12）

Power adapter	INPUT：AC100—240V 50/60Hz

	OUTPUT：DC24V 2A（Dual RJ45 interface）


Net weight	6.3KG（Including power cord and bracket)）

Gross weight	8.8KG

Warranty	1 Year

Certification	CE

4.WORKING MODE:

DC method generate ions with two polarity by applying "+" and "-" high voltage on two electrode needles. The utilization rate of ion generation is high, the external electromagnetic interference is small and the pollution

degree of the particulate matter in the purification environment is small.

Currently many ionizing air blowers in the market adopts high frequency AC. Due to the low discharge voltage and weak electric field, the dust resistance is poor, which is easy to cause corona occlusion and unable to eliminate static electricity

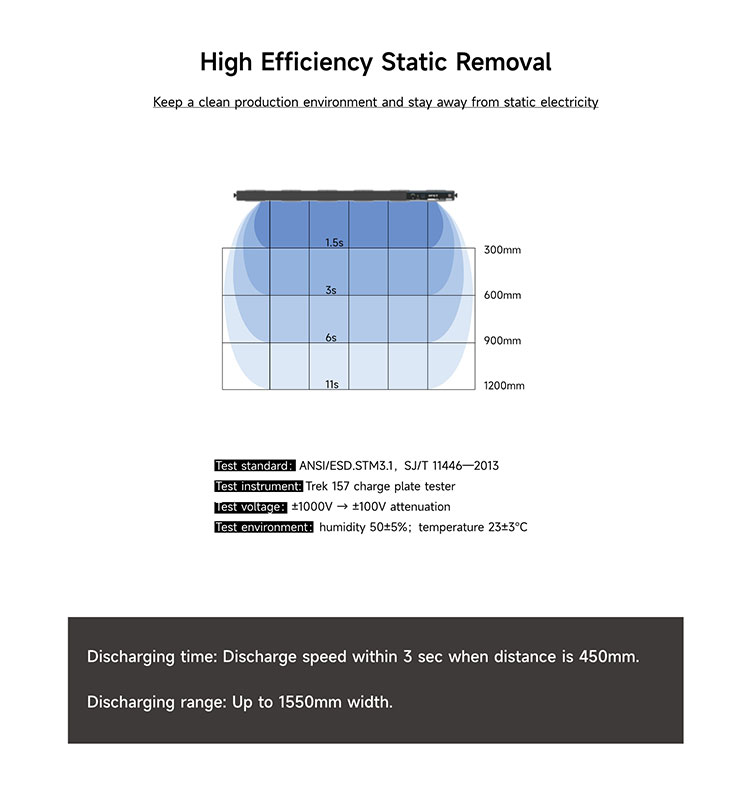

5.ELECTROSTATIC ELIMINATION EFFECT:

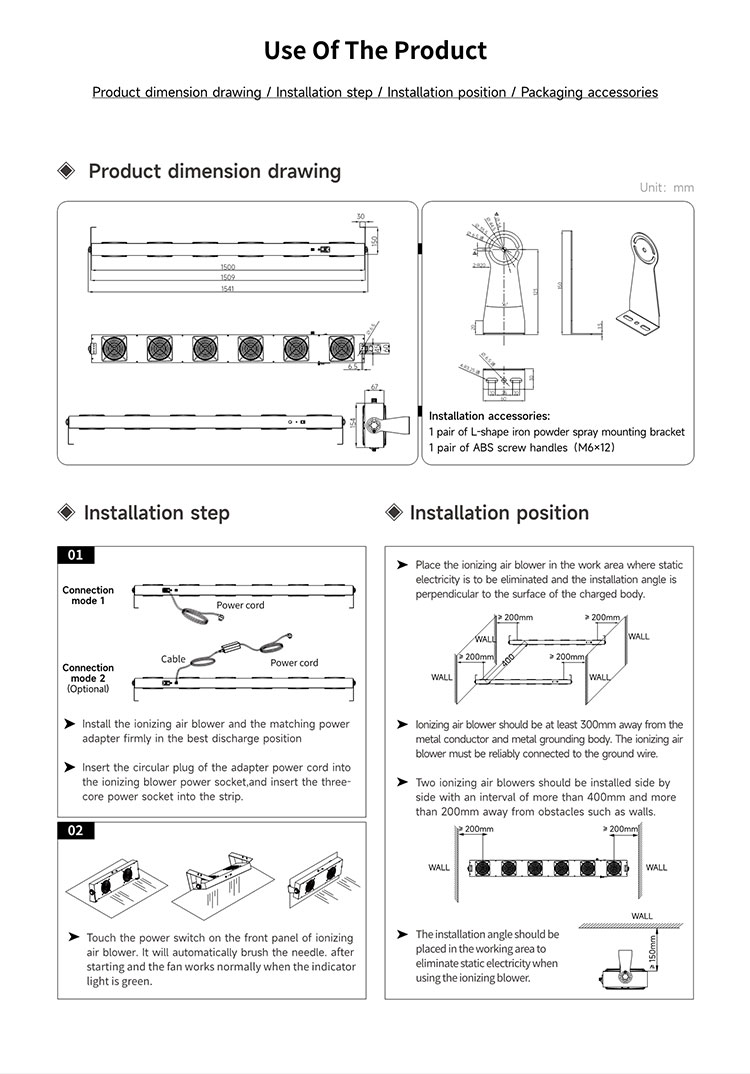

6.PRODUCT SIZE:
