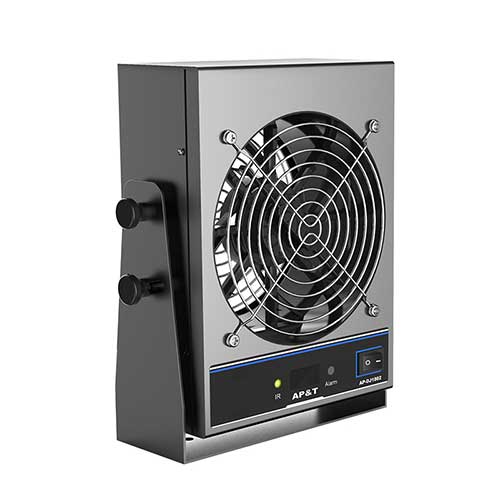

AP-DJ1811 Intelligent Control High Efficiency Static Eliminator

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-DJ1811 ionizing blower adopts pulse DC static elimination technology with 8 electrode needle design.High air volume,5-speed adjustment,stable performance,Air output volume 1.45 times more than that of the tradional ionizer,LCD display screen available.Negative high voltage amplitude can be adjusted by the remote control for the adjustment of ion balance voltage.

DOWNLOAD FILE OF AP-DJ1811:

ap-dj1811-intelligent-control-ionizing-air-blower-new.pdf

ap-dj1811-intelligent-control-ionizing-air-blower-new.pdf

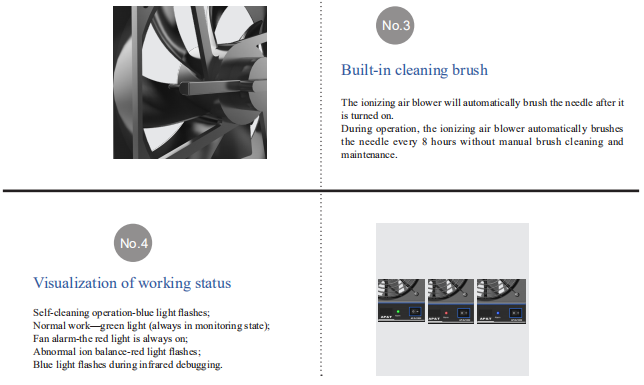

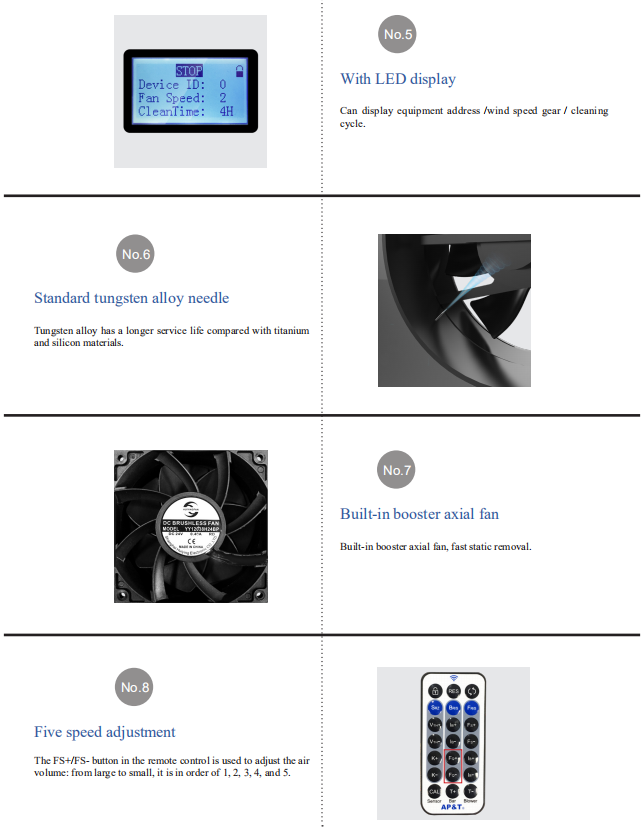

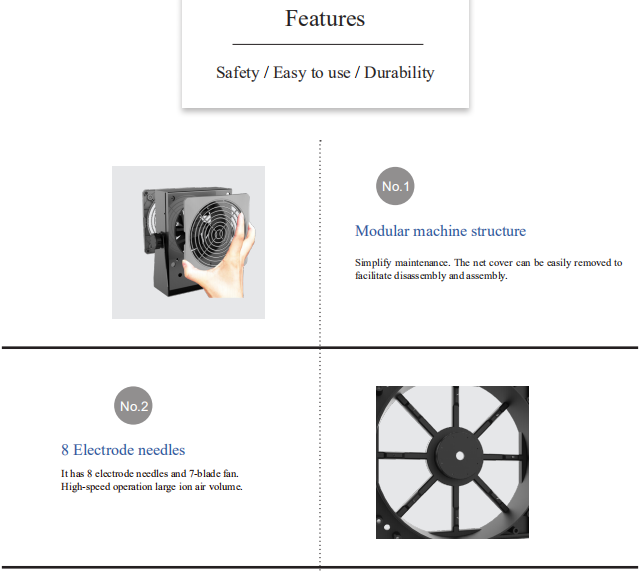

2.FEATURES:

1. LCD screen
2. Single air outlet
3. Indicator light
4. Built-in brush
5. 5-speed wind volume adjustment
6. Intelligent remote control
7. On-line communication
8. CE certification

3.SPECIFICATION:

Model	AP-DJ1811
Input voltage	DC 24V（RJ45 Interface）
Output voltage	DC±4KV → ±6KV
Power	12W
Ion emission	Pulse DC
Emitter electrode	Tungsten alloy
Discharge range	750300mm（LW）
Air volume	≤ 135CFM*1
Noise	Single air outlet≤ 58dBA（1000mm away from the air outlet）
Ozone thickness	≤ 0.05ppm（150mm away from the air outlet）
Ion balance	≤ \|±10V\|
Discharge speed	≤ 1.5S （300mm away from the air outlet）
Status indicator	Power on/clean operation—blue light flashes;
	Normal work—green light (always under monitoring status);
	Fan fault alarm—red light always on;
	High voltage fault alarm-red light flashes；
	Infrared debugging/cleaning prompt-blue light flashing
Communication method	RS485
Signal output	RS485（115200bps,8,1,n,n）≥ 20ms
Signal output	Collector open circuit：＜ 50V,100mA
Working temperature	0℃ -50℃
Working humidity	＜ 70%RH
Dimensions	14770.5190mmmm（LWH）Ionizing Air Blower body size）
Shell material	Aluminum powder spraying
Installation accessories	1 pair of U-shaped iron powder spraying mounting brackets, 1 pair of bakelite screw handles（M5×8）
Power adapter	INPUT：AC100—240V 50/60Hz；
Power adapter	OUTPUT：DC24V 2A（dual RJ45 Interface）
Weight	1.35KG（Including power cord and bracket）
Warranty	1Year
Certification	CE

4.WORKING MODE:

Pulse DC method generate ions with two polarity by applying "+" and "-" high voltage alternately on positive and negative electrode needles.Compared with power frequency AC method, the

utilization rate of ion generation is higher. And its static elimination ability can be exerted no matter in short or long distance. In addition, the high voltage amplitude can be adjusted, which is convenient for intelligent control.

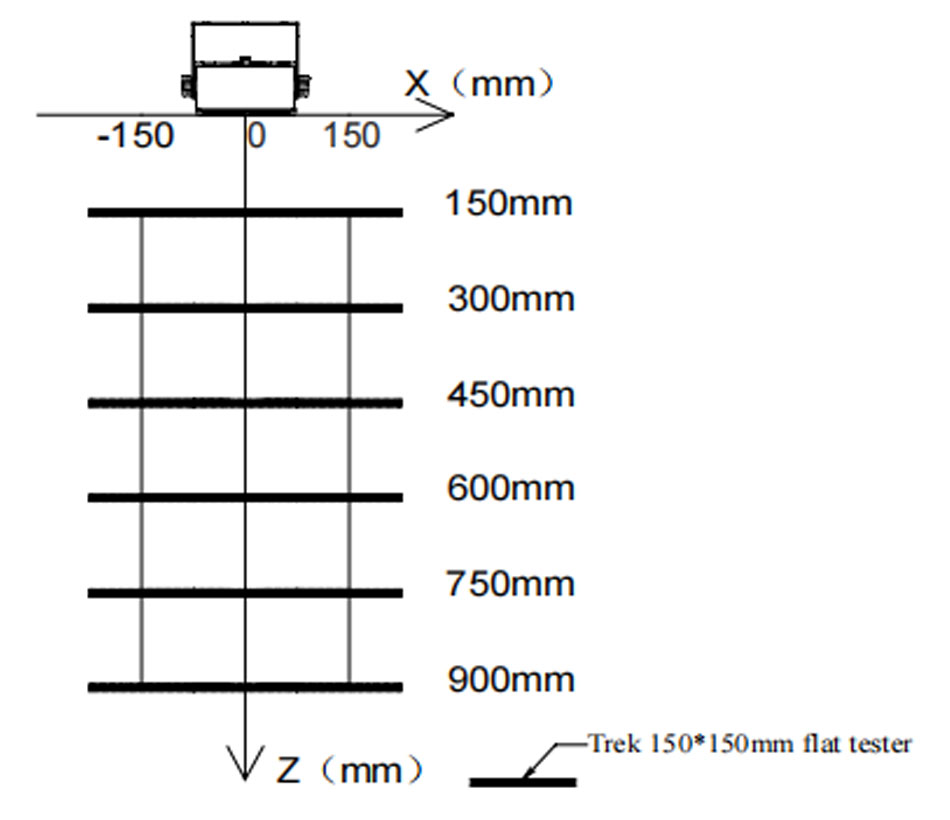

5.ELECTROSTATIC ELIMINATION EFFECT:
