AP-AC2456 High Efficiency Ionizing Air Gun

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

AP-AC2456 type ion air gun is one of the ion air gun series products produced by AP&T to eliminate static electricity on the surface of the object, is designed to provide static electricity protection for the target object surface and fast, efficient electrostatic blowing device. The use of AC high-voltage electricity, connected to a special emitting electrode, so that the air ionization, positive and negative ions, and compressed air to be eliminated by the electrostatic object surface, and positive and negative electrostatic charge neutralization, to achieve the purpose of efficient and reliable dissipation of electricity.





DOWNLOAD FILE OF AP-AC2456:

ap-ac2456-ionizing-air-gun-new.pdf
文件类型: .pdf ap-ac2456-ionizing-air-gun-new.pdf
2.FEATURES:

1.Small size and portable operation.
2.Excellent electrical performance index and good performance.
3.Eliminates static electricity and removes dust from the surface at the same time.
4.Working under high voltage, microcurrent state, safe and reliable.
5.Configuration AP-AC2455-28 special high-voltage power supply use.

3.SPECIFICATION:

Model

AP-AC2456

Input voltage

AC220V/50Hz     110V/60Hz

Output voltage

AC2800V

Power

20W

Optimum working distance

150~300mm

Ion balancing

 ≤±15V (match ESD STM3.1-2000;IEC 61340-5-1standard)

Discharge speed

 ≤2s

Noise

 ≤65db (150mm to blower)

Scope of air pressure

0.2 - 0.6mPa

Working temperature

0 - 50°C

Air connector

 8mm

Power cord length

2.5m

Net Weight

377g (include H.V cable)

Gross Weight

437g

Power supply

AP-DC-2455-28A/28B

Dimensions

150*35*160mm(L*W*H)

4.WORKING MODE:

AP-AC2456 type ion wind gun using AC high-voltage electricity, connected to a special launch electrode, so that the air ionization, the generation of positive and negative ions, and by the compressed air transported to the surface of the eliminated static objects, and positive and negative electrostatic charge neutralization, to achieve efficient and reliable dissipation of the purpose.

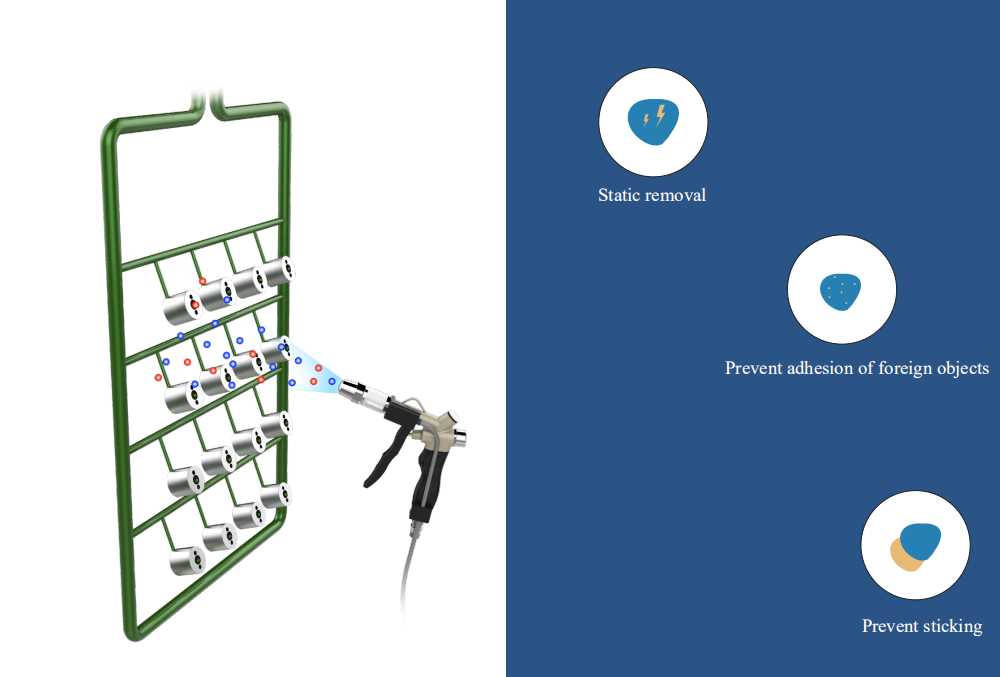

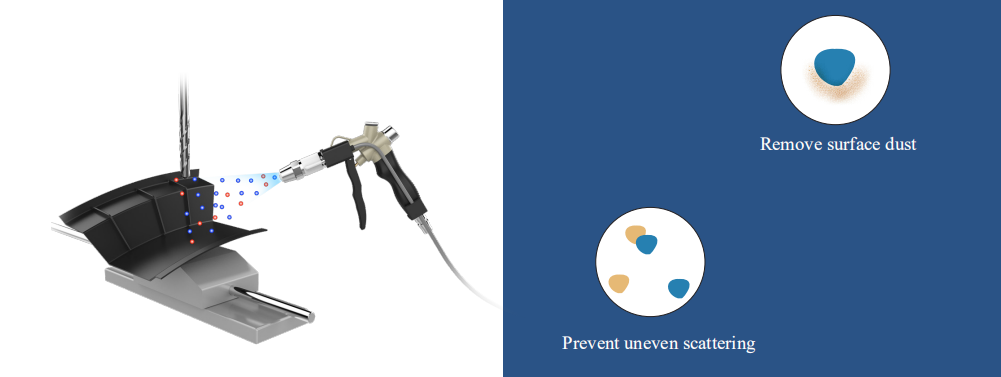

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:
