AP-AB1218 Air Source Anti-Electric Shock Pulse AC Ion Bar

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

AP-AB1218 ionizes air molecules by using DC high voltage acting on coupled electrode needle to generate corona discharges, producing large amount of positive and negative air ions and transferring to the surface of objects through compressed air to reach high efficiency of static elimination.



DOWNLOAD FILE OF AP-AB1218:

ap-ab1218-high-efficiency-electroshock-proof-ion-bar-new.pdf
文件类型: .pdf ap-ab1218-high-efficiency-electroshock-proof-ion-bar-new.pdf
2.FEATURES:

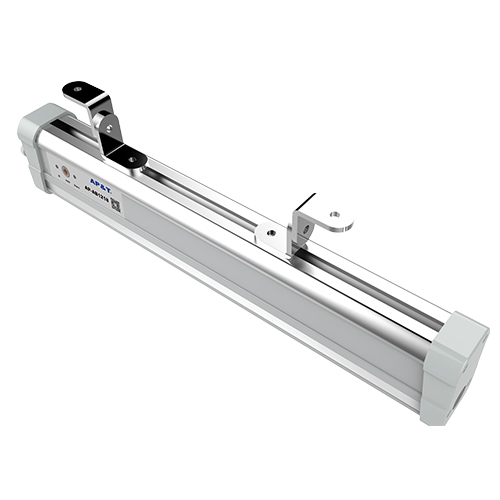

1. Easy Installation(Stainless steel mounting angle provided for different installation environment)

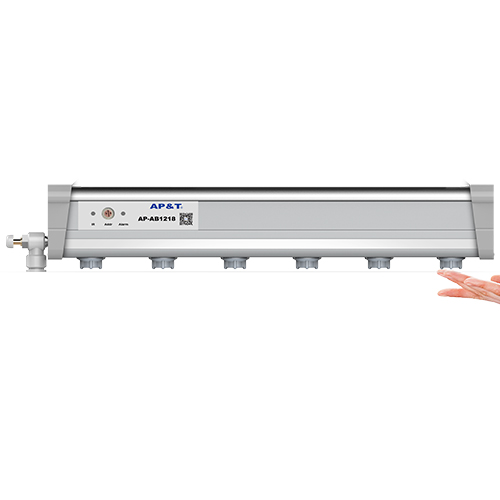

2. Electric shock proof(Prevent human from electric shock)
3. Intake throttle valve(The specification is Φ8-G1/8 grey)
4. Working status visualization(Red light alarm when high voltage abnormal)
5. Network Monitoring(Wired network communication realisable and monitor the working status of the ion bar)
6. CE Certified(Electromagnetic protection function)
3.SPECIFICATION:

Model

AP-AB1218

Input voltage

DC 24V

Input current

600mA

Power

10W

Working voltage

DC±5KV

Ion emission

Pulse AC

Emitter electrode

Tungsten alloy

Discharge structure

Resistance coupling

Output frequency

0.1,1,3,5,10,20,30,50,70,80,100Hz( ex-work setting50Hz)

Duty ratio

10%—90%

Discharge range

L*W*H{300-3000mm}*300*1000mm

Installation distance

100 → 1000mm

Ion balance

|±30V|AVG

Discharge time

2S

Alarm indication

High voltage alarm indicator(Green light: Normal working, Red light : Abnormal high voltage )

Communication

function

RS485

Signal output

Collector open circuit 50V/100mA

Air pressure

0.6MPa

Intake throttle valve connector

Φ8-G1/8 Grey

Working temperature

0 -50

Working humidity

70%

Dimensions

L*W*H{300-3000mm}*35*64.5mm

Bar material

Flame retardant PVCALSUS

Packaging

accessories

180°rotatable mounting bracketM5-12*12*4 square nut

Warranty

1Year

Certification

CE

4.WORKING MODE:
The pulsed AC method alternately applies a high voltage of "+" and "-" to each electrode needle, generating ions of two polarities. Compared with the industrial frequency AC method, the ion generation rate is higher, and the electrostatic elimination capability can be utilized at both near and far distances. In addition, the discharge frequency can be adjusted to extend the elimination distance. The positive and negative ion output ratio can be adjusted for intelligent control.
5.ELECTROSTATIC ELIMINATION EFFECT:

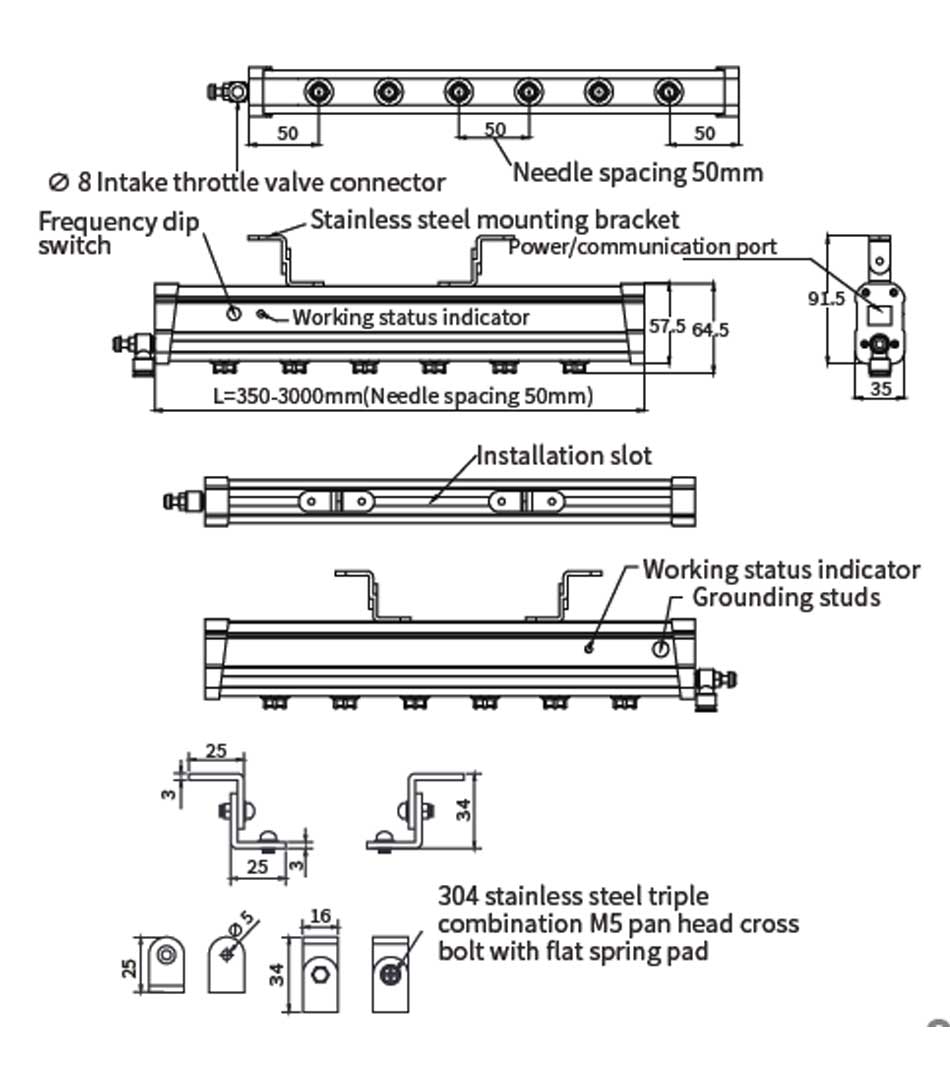

6.PRODUCT SIZE:
