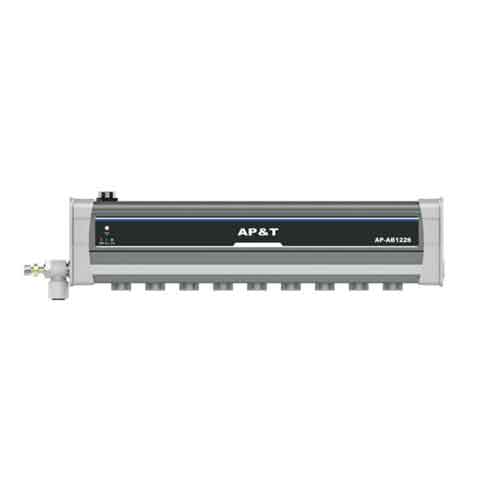

AP-AB1226 Intelligent High Speed Self-balancing anti static bar devices

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-AB1226 ion bar adopts pulse AC static elimination technology.It can eliminate static in short or long distance.It has the strong ion output based by 25mm narrow needle spacing design.

DOWNLOAD FILE OF AP-AB1226:

ap-ab1226-intelligent-self-balancing-ion-bar-new-version.pdf

ap-ab1226-intelligent-self-balancing-ion-bar-new-version.pdf

2.FEATURES:

1. Discharge parts easy to be replaced

2. Indicator Light

3. Power Code

4. Remote Control

5. Easy Installation
6. CE certification

3.SPECIFICATION:

Model	AP-AB1226
Input voltage	DC 24V
Power	＜ 5W（Default factory Settings）
Output voltage	4000V → 7000V
Ion emission	Pulse AC
Emitter electrode Output frequency	Tungsten alloy 55Hz
Duty ratio	5%—95%
Discharge range	LWH：Bar length 200100mm
Installation distance	100 → 1000mm
Ion balance	≤ \|±30V\|（AVG）
Discharge time Status indicator	≤ 1S（Test distance 300mm） Green light - normal，Blue light - standby，Blue light flashing—debugging / cleaning，Red light - Abnormal high voltage
Working temperature Working humidity	0℃ -50℃ ＜ 70%
Air pressure	0.1-0.6MPa
Intake throttle valve connector	G1/8 for φ8 pipe diameter
Dimensions Bar material	LWH：{200，225，250... → 500mm( Needle spacing 25mm)}3668.2mm Flame retardant PVC、ABS、SUS
Packaging accessories	M5-12124 square nut；DC24V high flexible towline power cable 1500mm
Warranty	1Year
Certification	CE

4.WORKING MODE:

Pulse AC method generate ions with two polarity by applying "+" and "-" high voltage alternately on each electrode needles.Compared with power frequency AC method, the utilization rate of ion generation is higher. And its static elimination ability can be exerted no matter in short or long distance. In addition, the discharge frequency can be adjusted, which can extend the discharge distance. The output ratio of positive and negative ions can be adjusted, which is convenient for intelligent control.

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:
