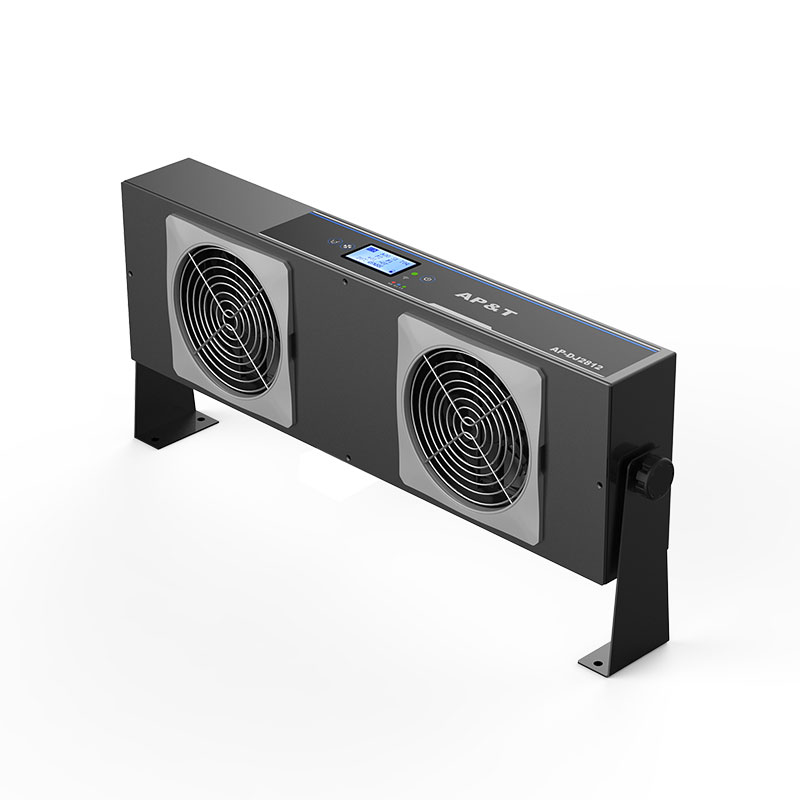

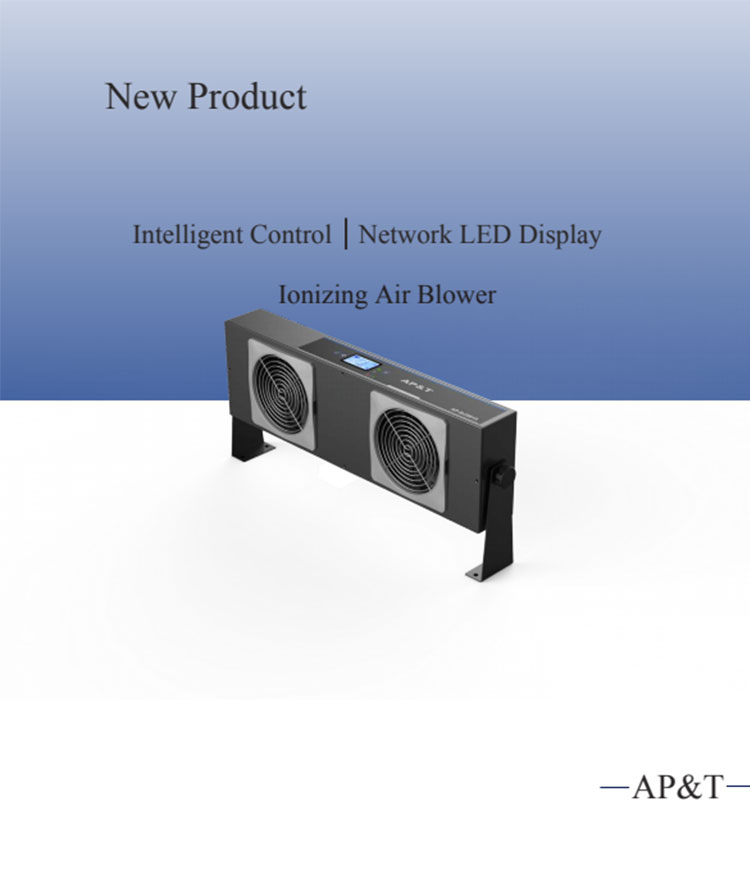

AP-DJ2812 Intelligent control networking LCD display ionizing air blower

Video


Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.WORKING MODE:

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:

1.PRINCIPLES:

AP-DJ2812 intelligent control / networking type screen display ion fan using DC de static technology, high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans to improve 1.45 times. With LCD display, with ion self-balancing function, self-balancing range ± 10V, and real-time display of the balance voltage.

DOWNLOAD FILE OF AP-DJ2812:

ap-dj2812-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf

ap-dj2812-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf

2.FEATURES:

1. 8 emitters makes high ion volume and fast decay time;

2. Auto-cleaning when switch on;

3. Default auto-cleaning time every 8 hours, Artificial emitter cleaning maintenance free;

4. Five gears of stable fan speed;

5. LED display shows ID address , fan speed and cleaning time;

6. Duty ratio of positive and negative ion output adjustable to adjust ion balance;

7. Auto balance with range ±10V.

9. Light & Voice alarm when fan default and ion balance abnormal;

10. Remote control ion output When Plate or material surface with high positive static charge, Press “Fan+”“IB-”; When Plate or material surface with high Negative static charge, Press “Fan-”“IB+”

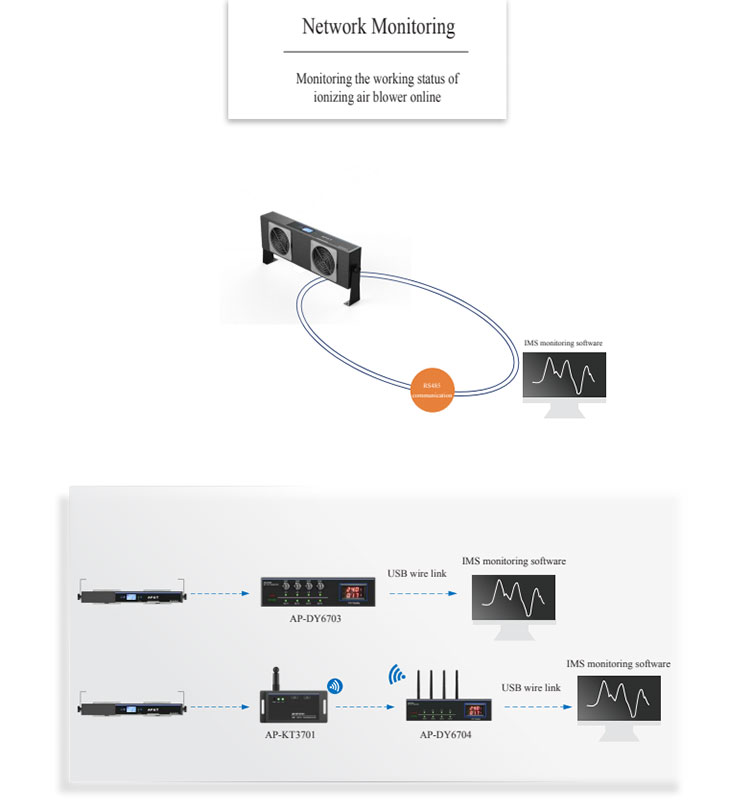

11. Support integrate control by PC, monitor working state of ion blower

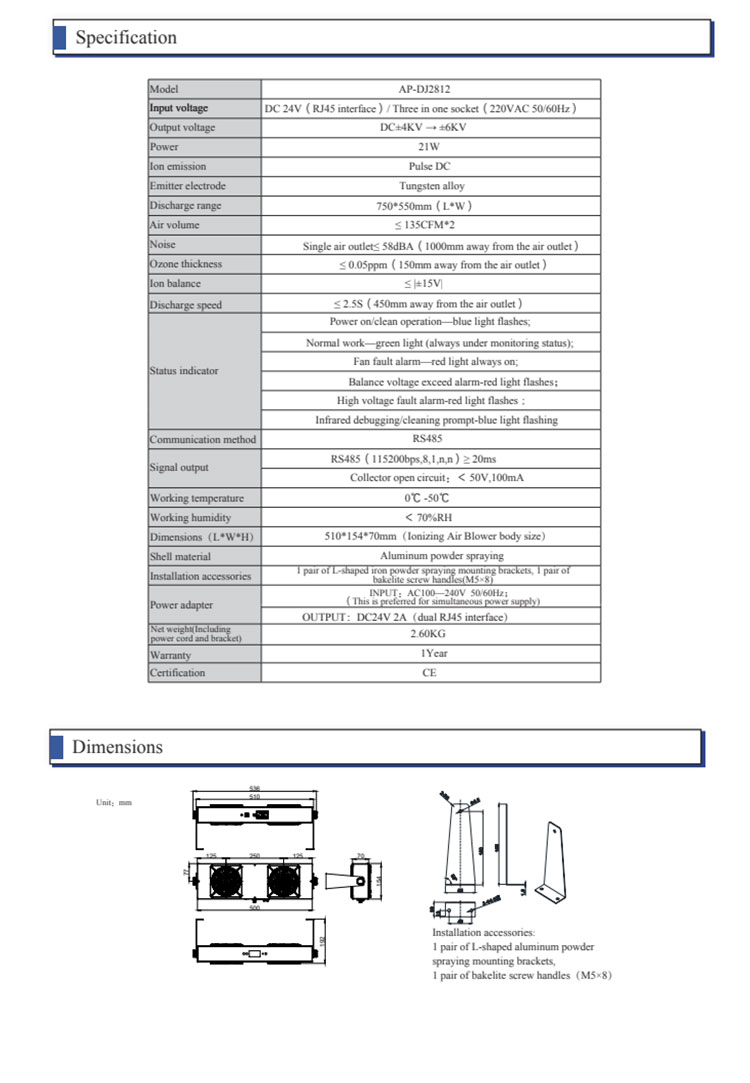

3.SPECIFICATION:

Model	AP-DJ2812
Input voltage	DC 24V（RJ45 interface）/ Three in one socket（220VAC 50/60Hz）
Output voltage	DC±4KV → ±6KV
Power	21W
Ion emission	Pulse DC
Emitter electrode	Tungsten alloy
Discharge range	750550mm（LW）
Air volume	≤ 135CFM*2
Noise	Single air outlet≤ 58dBA（1000mm away from the air outlet）
Ozone thickness	≤ 0.05ppm（150mm away from the air outlet）
Ion balance	≤ \|±15V\|
Discharge speed	≤ 2.5S（450mm away from the air outlet）
Status indicator	Power on/clean operation—blue light flashes;
	Normal work—green light (always under monitoring status);
	Fan fault alarm—red light always on;
	Balance voltage exceed alarm-red light flashes；
	High voltage fault alarm-red light flashes；
	Infrared debugging/cleaning prompt-blue light flashing
Communication method	RS485
Signal output	RS485（115200bps,8,1,n,n）≥ 20ms
Signal output	Collector open circuit：＜ 50V,100mA
Working temperature	0℃ -50℃
Working humidity	＜ 70%RH
Dimensions（LWH）	51015470mm（Ionizing Air Blower body size）
Shell material	Aluminum powder spraying
Installation accessories	1 pair of L-shaped iron powder spraying mounting brackets, 1 pair of bakelite screw handles(M5×8)
Power adapter	INPUT：AC100—240V 50/60Hz；（This is preferred for simultaneous power supply)
Power adapter	OUTPUT：DC24V 2A（dual RJ45 interface）
Net weight(Including power cord and bracket)	2.60KG
Warranty	1Year
Certification	CE

4.WORKING MODE:

The pulsed DC method alternately applies "+" and "-" high voltage to the positive and negative electrode pins to generate two polar ions. Compared with the industrial frequency AC method, the ion generation utilization rate is higher, whether for close or long distance, can play its electrostatic elimination ability. In addition, the discharge frequency can be adjusted to extend the elimination distance. Positive and negative ion output ratio can be adjusted for intelligent control.

5.ELECTROSTATIC ELIMINATION EFFECT:

6.PRODUCT SIZE:
