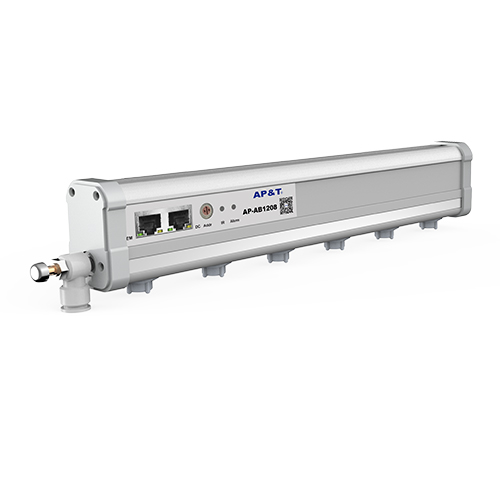

AP-AB1208 Pulse AC Air Source Anti Static Ionizer Bars With Remote Control

Product Description
Feature
Working way
Application
Specification
Installation
Product Description


Feature




Working way




Application

Specification

Product Feature

1.Bar shaped and cross over static eliminator

2.Adjustable positive and negative ion output rate

3.Manufactured by using the latest patented technology of static removing

4.Fast speed of static removing, low ion balance and high safety

5.Adjustable positive and negative ion frequency


Specification

Model No.

AP-AB1208

Input Voltage

DC 24V

Input current

600mA

Power

10W

Working Voltage

±5000V

Working method

Pulse AC

Emitter electrode

SUS

Discharge structure

Resistance coupling

Output frequency

1,3,5,10,20,30,50Hz(Factory setting:30Hz)

Duty Ratio

10%—90%

Working range

L*W*H{385-410Probe distance 25mm);460-2960Probe distance 50mm}*300*1000mm

Working distance

100→1000mm

Ion balance

≤|±30V|AVE

Discharge speed

≤2S

Warning indicate

Power input indicatorHigh Voltage indicatorGreen is normalRed is abnormal

Status monitoring

 Series network monitoring / wireless monitoring

Airflow pressure

≤0.6MPa

air source connector With throttle valve

Φ8-G1/8 Black

Working temperature

0℃-50℃

Working humidity

70%

Dimension

L*W*H{385-410Probe distance50mm);460-2960Probe distance50mm}*35*78.4mm

Bar body material

Flame retardant PVCABSALSUS

Accessories

Flexible 180° install bracket

Power adapter

GRT-240200 DC24V 2ADual network port output123*61*40.5mmL*W*H

Power adapter cable length

2.5m

Warranty

1 Year

Certificate

CE


Installation
